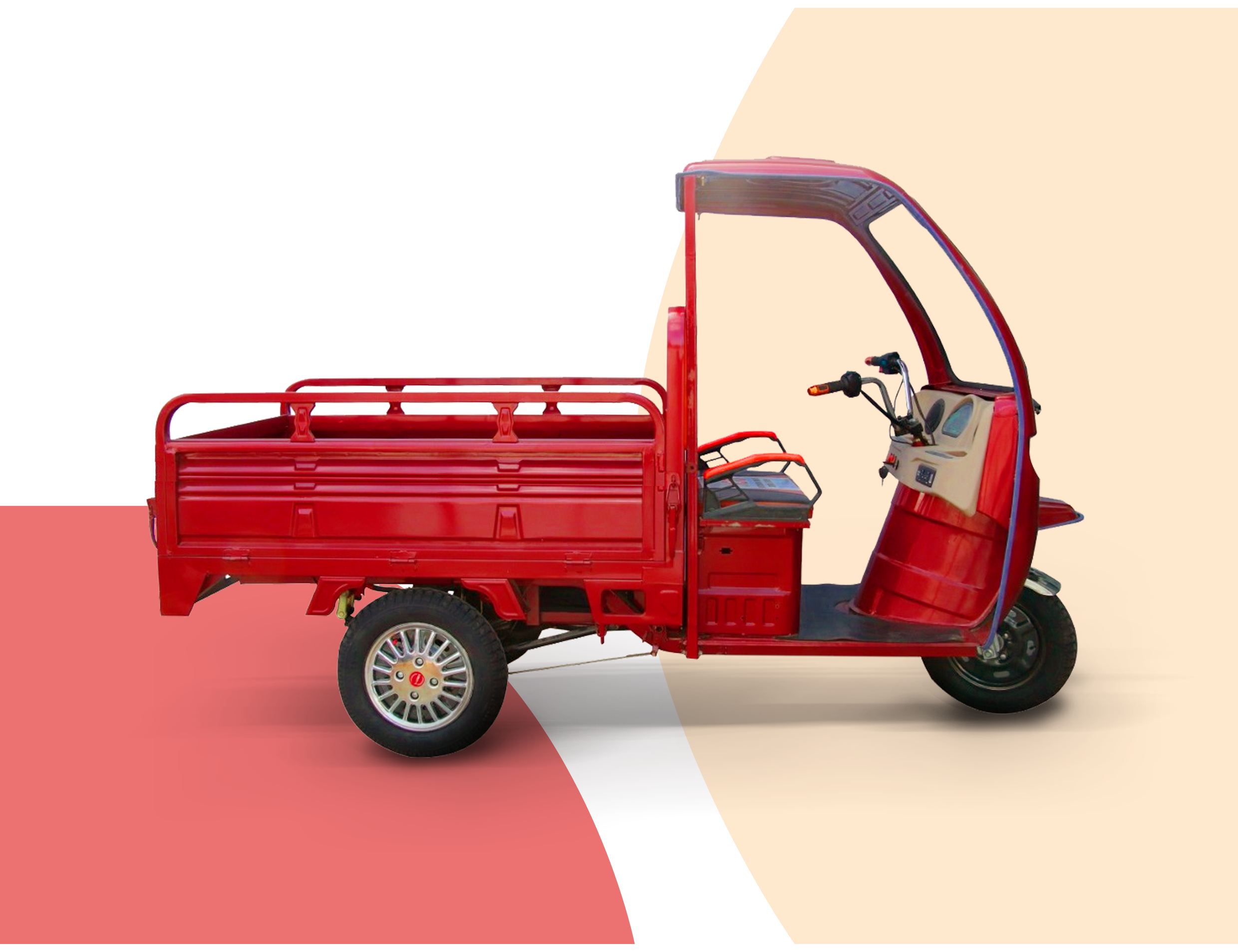

Tiger VB & VB+, model build with front fascia that combines electric motors with a drivetrain and battery system. The electric carts are versatile solutions designed for transporting construction materials, waste collection, and various urban and rural tasks in India. Featuring long open-body loading containers (Dalla size 4/6) and closed driver cabins, they excel in navigating narrow streets and diverse terrains. Classified as L3 vehicles, akin to diesel ICE engine cars, they can be registered at any Regional Transport Office (RTO)
Preloader Close
T
I
G
E
R
- Unleash the Power of TIGER
- +91 98408 42648
- Anna Nagar East, Chennai - 102
- sales@tigerautomobiles.com
Tiger - VB
Color
sPECIFICAtIoN
|
E-Cart |
Tiger VB |
Tiger VB+ |
|
ATTRIBUTE |
||
|
VEHICLE CATEGORY |
L3 LOADING CART |
L3 LOADING CART |
|
VEHICLE SEATING/ LOADING CAPACITY |
Driver & 500 Kg / 1 Ton |
Driver & 500 Kg / 1 Ton |
|
BATTERY, CONTROLLER & POWER |
||
|
MOTOR TYPE |
BLDC MOTOR & POWERTRAIN |
BLDC MOTOR & POWERTRAIN |
|
BATTERY TYPE |
LEAD ACID |
LITHIUM-ION-LFP |
|
BATTERY VOLTAGE |
48 V |
48 V |
|
BATTERY CAPACITY |
140 AH |
100 AH |
|
MOTOR POWER |
1.2 KW |
1.2 KW |
|
PEAK TORQUE |
21 NM |
21 NM |
|
CONTROLLER |
24 Tube MOSFET |
24 Tube MOSFET |
|
SPEED |
≤25kmph |
≤25kmph |
|
CLIMBING |
≤5 Degree |
≤5 Degree |
|
TRANSMISSION |
||
|
TRANSMISSION TYPE |
DIFFERENTIAL |
DIFFERENTIAL |
|
SUSPENSION & BRAKES |
||
|
FRONT SUSPENSION |
HYDRAULIC 43MM |
HYDRAULIC 43MM |
|
REAR SUSPENSION |
LEAF SPRING WITH DAMPENER |
LEAF SPRING WITH DAMPENER |
|
STEERING |
HANDLE BAR |
HANDLE BAR |
|
BRAKE |
DRUM BRAKE HYDRAULICALLY ACTUATED |
DRUM BRAKE HYDRAULICALLY ACTUATED |
|
WHEEL |
2.15J-12” |
2.15J-12” |
|
TYRE |
3.75-12 |
3.75-12 |
|
DIMENSION |
||
|
WHEELBASE |
2130 MM |
2130 MM |
|
MINIMUM GROUND CLEARANCE |
180 MM |
180 MM |
|
DIMENSIONS(LXWXH) |
Length 5 x Width 3.5 x Height 4.15 Ft / Length 6 x Width 4.5x x Height 4.15 Ft |
Length 5 x Width 3.5 x Height 4.15 Ft / Length 6 x Width 4.5x x Height 4.15 Ft |
|
WEIGHTS |
||
|
GROSS VEHICLE WEIGHT (WITH BATTERIES) |
699 Kg |
699 Kg |
|
PAYLOAD |
300 Kg & Maximum 500 Kg |
300 Kg & Maximum 500 Kg |
|
PERFORMANCE |
||
|
TOP SPEED |
<25 KMPH |
<25 KMPH |
|
TYPICAL DRIVING RANGE |
70 TO 90 KM |
70 TO 90 KM |
|
GRADEABILITY |
12% |
12% |
|
CHARGER |
||
|
CHARGER TYPE |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
|
CHARGE DURATION |
5-6 HRS |
5-6 HRS |
|
OTHERS |
||
|
FRONT WIND SHIELD |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
|
HEADLIGHT & ROOF LIGHT |
HALOGON |
HALOGON |
|
METER |
ANALOG / DIGITAL METER |
ANALOG / DIGITAL METER |
|
BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
|
ACCESSORIES |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
|
Tiger VB uses Valve Regulated Lead Acid (VRLA) batteries, while Tiger VB+ opts for Lithium Iron Phosphate (LFP) batteries, offering flexibility based on battery longevity and performance needs. Making them accessible for small businesses, industrial operations, agricultural tasks, and municipal services alike |
||
