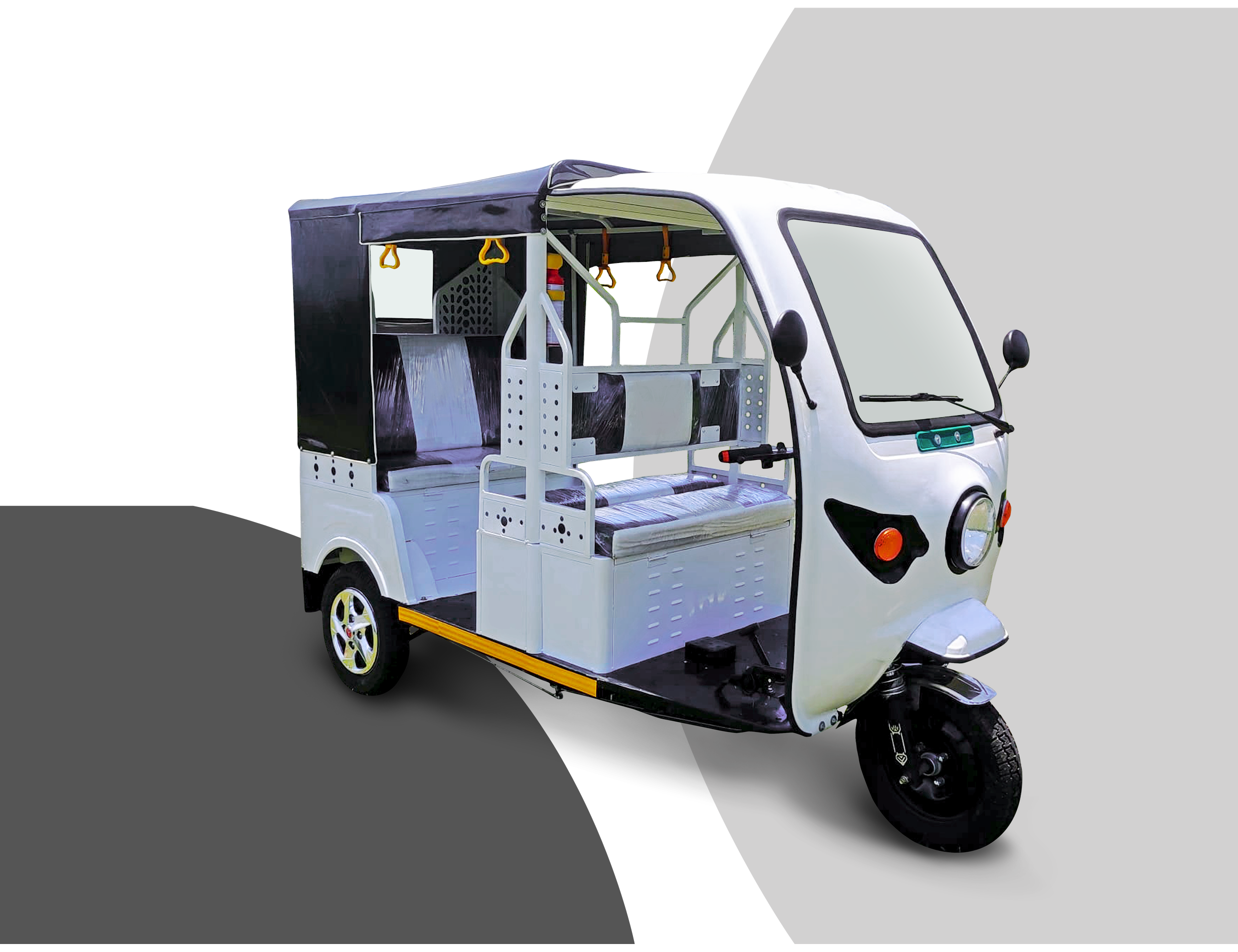

Tiger VR & VR+, model of E-Rickshaws powered entirely by electric drivetrains with rechargeable batteries. It is designed with front fascia to accommodate 4 passengers plus the driver, they are equipped with electric motors and offer an affordable and efficient transportation solution for various purposes such as shared auto business models, village and urban connectivity, school children pick-up and drop-off, company employee transportation, and last-mile connectivity through fleet operations. It is under L3 category and can be registered in the Regional Transport Office (RTO) throughout India, except in Tamilnadu and Telangana, similar to ICE engine diesel vehicles
Preloader Close
T
I
G
E
R
- Unleash the Power of TIGER
- +91 98408 42648
- Anna Nagar East, Chennai - 102
- sales@tigerautomobiles.com
Tiger - VR
Color
sPECIFICAtIoN
|
E-Cart |
Tiger VR |
Tiger VR+ |
|
ATTRIBUTE |
||
|
VEHICLE CATEGORY |
L3 PASSENGER |
L3 PASSENGER |
|
VEHICLE SEATING/ LOADING CAPACITY |
DRIVER +4 |
DRIVER +4 |
|
BATTERY, CONTROLLER & POWER |
||
|
MOTOR TYPE |
BLDC MOTOR & POWERTRAIN |
BLDC MOTOR & POWERTRAIN |
|
BATTERY TYPE |
LEAD ACID |
LITHIUM-ION-LFP |
|
BATTERY VOLTAGE |
48 V |
48 V |
|
BATTERY CAPACITY |
140 AH |
100 AH |
|
MOTOR POWER |
1.2 KW |
1.2 KW |
|
PEAK TORQUE |
21 NM |
21 NM |
|
CONTROLLER |
24 Tube MOSFET |
24 Tube MOSFET |
|
SPEED |
≤25kmph |
≤25kmph |
|
CLIMBING |
≤5 Degree |
≤5 Degree |
|
TRANSMISSION |
||
|
TRANSMISSION TYPE |
DIFFERENTIAL |
DIFFERENTIAL |
|
SUSPENSION & BRAKES |
||
|
FRONT SUSPENSION |
HYDRAULIC 43MM |
HYDRAULIC 43MM |
|
REAR SUSPENSION |
LEAF SPRING WITH DAMPENER |
LEAF SPRING WITH DAMPENER |
|
STEERING |
HANDLE BAR |
HANDLE BAR |
|
BRAKE |
DRUM BRAKE HYDRAULICALLY ACTUATED |
DRUM BRAKE HYDRAULICALLY ACTUATED |
|
WHEEL |
2.15J-12” |
2.15J-12” |
|
TYRE |
3.75-12 |
3.75-12 |
|
DIMENSION |
||
|
WHEELBASE |
2130 MM |
2130 MM |
|
MINIMUM GROUND CLEARANCE |
180 MM |
180 MM |
|
DIMENSIONS(LXWXH) |
Length 5 x Width 3.5 x Height 4.15 Ft |
Length 5 x Width 3.5 x Height 4.15 Ft |
|
WEIGHTS |
||
|
GROSS VEHICLE WEIGHT (WITH BATTERIES) |
699 Kg |
699 Kg |
|
PAYLOAD |
300 Kg & Maximum 500 Kg |
300 Kg & Maximum 500 Kg |
|
PERFORMANCE |
||
|
TOP SPEED |
<25 KMPH |
<25 KMPH |
|
TYPICAL DRIVING RANGE |
70 TO 90 KM |
70 TO 90 KM |
|
GRADEABILITY |
12% |
12% |
|
CHARGER |
||
|
CHARGER TYPE |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
|
CHARGE DURATION |
5-6 HRS |
5-6 HRS |
|
OTHERS |
||
|
FRONT WIND SHIELD |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
|
HEADLIGHT & ROOF LIGHT |
HALOGON |
HALOGON |
|
METER |
ANALOG / DIGITAL METER |
ANALOG / DIGITAL METER |
|
BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
|
ACCESSORIES |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
|
Tiger VR utilizes Valve Regulated Lead Acid (VRLA) batteries, while Tiger VR+ is equipped with Lithium Iron Phosphate (LFP) batteries. This differentiation allows for flexibility in choice based on specific needs and preferences regarding battery performance and longevity |
||
