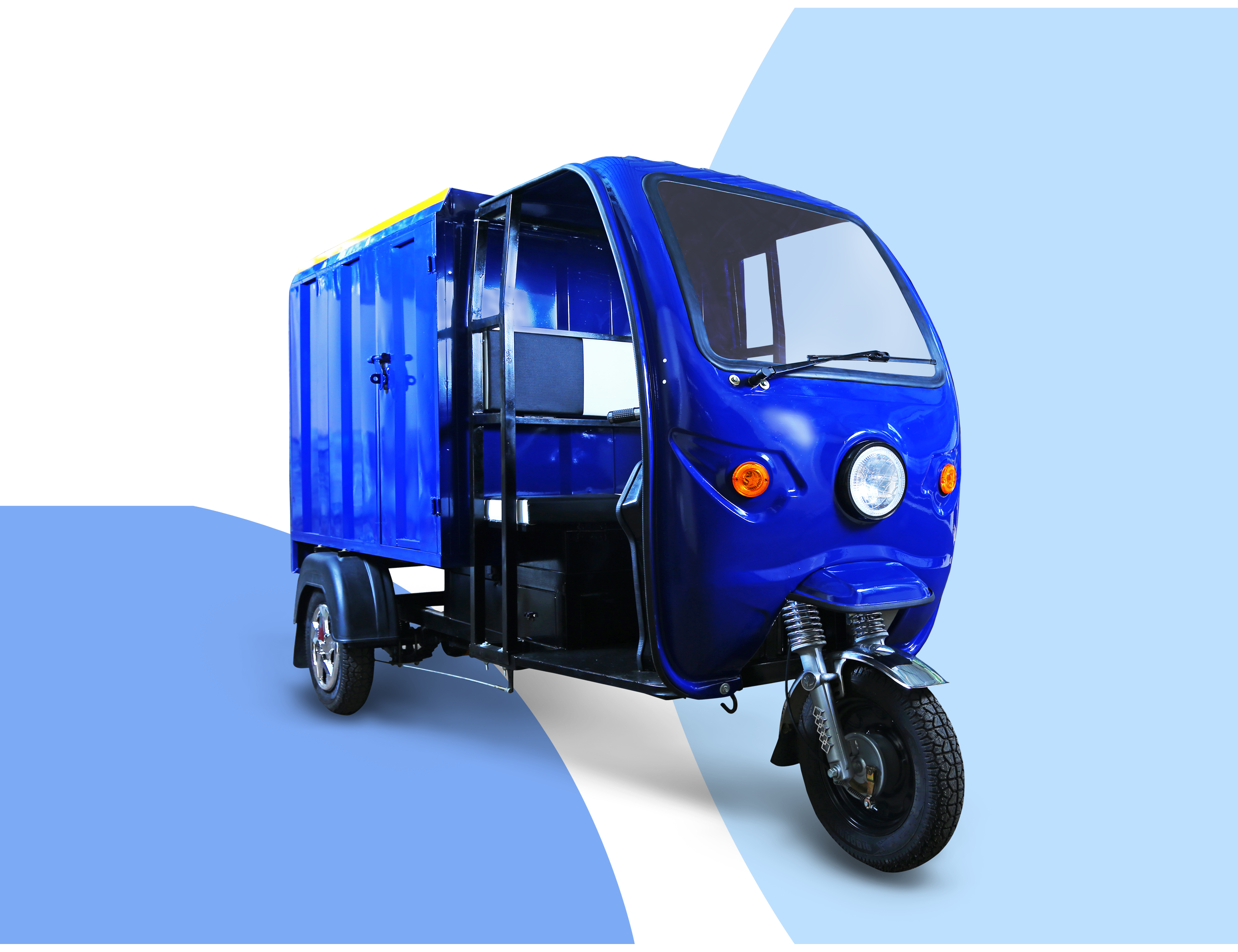

Tiger VD & VD+, model E-Carts are designed with an efficient front fascia that combines electric motors with a drivetrain and battery system. It is a closed-body loading container with a closed driver Cabin, making them ideal for applications such as small merchants delivering grocery items, various industrial applications, agricultural applications, courier services, vegetables and fruit sales in the streets, and hotel and canteen food supplies to the nearest branches and customers. It is classified as an L3 vehicle and is registered at any Regional Transport Office (RTO) in India, same like ICE-powered diesel vehicles
Preloader Close
T
I
G
E
R
- Unleash the Power of TIGER
- +91 98408 42648
- Anna Nagar East, Chennai - 102
- sales@tigerautomobiles.com
Tiger - VD
Color
sPECIFICAtIoN
|
E-Cart |
Tiger VD |
Tiger VD+ |
|
ATTRIBUTE |
||
|
VEHICLE CATEGORY |
L3 LOADING CART |
L3 LOADING CART |
|
VEHICLE SEATING/ LOADING CAPACITY |
Driver & 500 Kg / 1 Ton |
Driver & 500 Kg / 1 Ton |
|
BATTERY, CONTROLLER & POWER |
||
|
MOTOR TYPE |
BLDC MOTOR & POWERTRAIN |
BLDC MOTOR & POWERTRAIN |
|
BATTERY TYPE |
LEAD ACID |
LITHIUM-ION-LFP |
|
BATTERY VOLTAGE |
48 V |
48 V |
|
BATTERY CAPACITY |
140 AH |
100 AH |
|
MOTOR POWER |
1.2 KW |
1.2 KW |
|
PEAK TORQUE |
21 NM |
21 NM |
|
CONTROLLER |
24 Tube MOSFET |
24 Tube MOSFET |
|
SPEED |
≤25kmph |
≤25kmph |
|
CLIMBING |
≤5 Degree |
≤5 Degree |
|
TRANSMISSION |
||
|
TRANSMISSION TYPE |
DIFFERENTIAL |
DIFFERENTIAL |
|
SUSPENSION & BRAKES |
||
|
FRONT SUSPENSION |
HYDRAULIC 43MM |
HYDRAULIC 43MM |
|
REAR SUSPENSION |
LEAF SPRING WITH DAMPENER |
LEAF SPRING WITH DAMPENER |
|
STEERING |
HANDLE BAR |
HANDLE BAR |
|
BRAKE |
DRUM BRAKE HYDRAULICALLY ACTUATED |
DRUM BRAKE HYDRAULICALLY ACTUATED |
|
WHEEL |
2.15J-12” |
2.15J-12” |
|
TYRE |
3.75-12 |
3.75-12 |
|
DIMENSION |
||
|
WHEELBASE |
2130 MM |
2130 MM |
|
MINIMUM GROUND CLEARANCE |
180 MM |
180 MM |
|
DIMENSIONS(LXWXH) |
Length 5 x Width 3.5 x Height 4.15 Ft |
Length 5 x Width 3.5 x Height 4.15 Ft |
|
WEIGHTS |
||
|
GROSS VEHICLE WEIGHT (WITH BATTERIES) |
699 Kg |
699 Kg |
|
PAYLOAD |
300 Kg & Maximum 500 Kg |
300 Kg & Maximum 500 Kg |
|
PERFORMANCE |
||
|
TOP SPEED |
<25 KMPH |
<25 KMPH |
|
TYPICAL DRIVING RANGE |
70 TO 90 KM |
70 TO 90 KM |
|
GRADEABILITY |
12% |
12% |
|
CHARGER |
||
|
CHARGER TYPE |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
|
CHARGE DURATION |
5-6 HRS |
5-6 HRS |
|
OTHERS |
||
|
FRONT WIND SHIELD |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
|
HEADLIGHT & ROOF LIGHT |
HALOGON |
HALOGON |
|
METER |
ANALOG / DIGITAL METER |
ANALOG / DIGITAL METER |
|
BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
|
ACCESSORIES |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
|
Tiger VD utilizes Valve Regulated Lead Acid (VRLA) batteries, while Tiger VD+ is equipped with Lithium Iron Phosphate (LFP) batteries. This differentiation allows for flexibility in choice based on specific needs and preferences regarding battery performance and longevity. |
||
