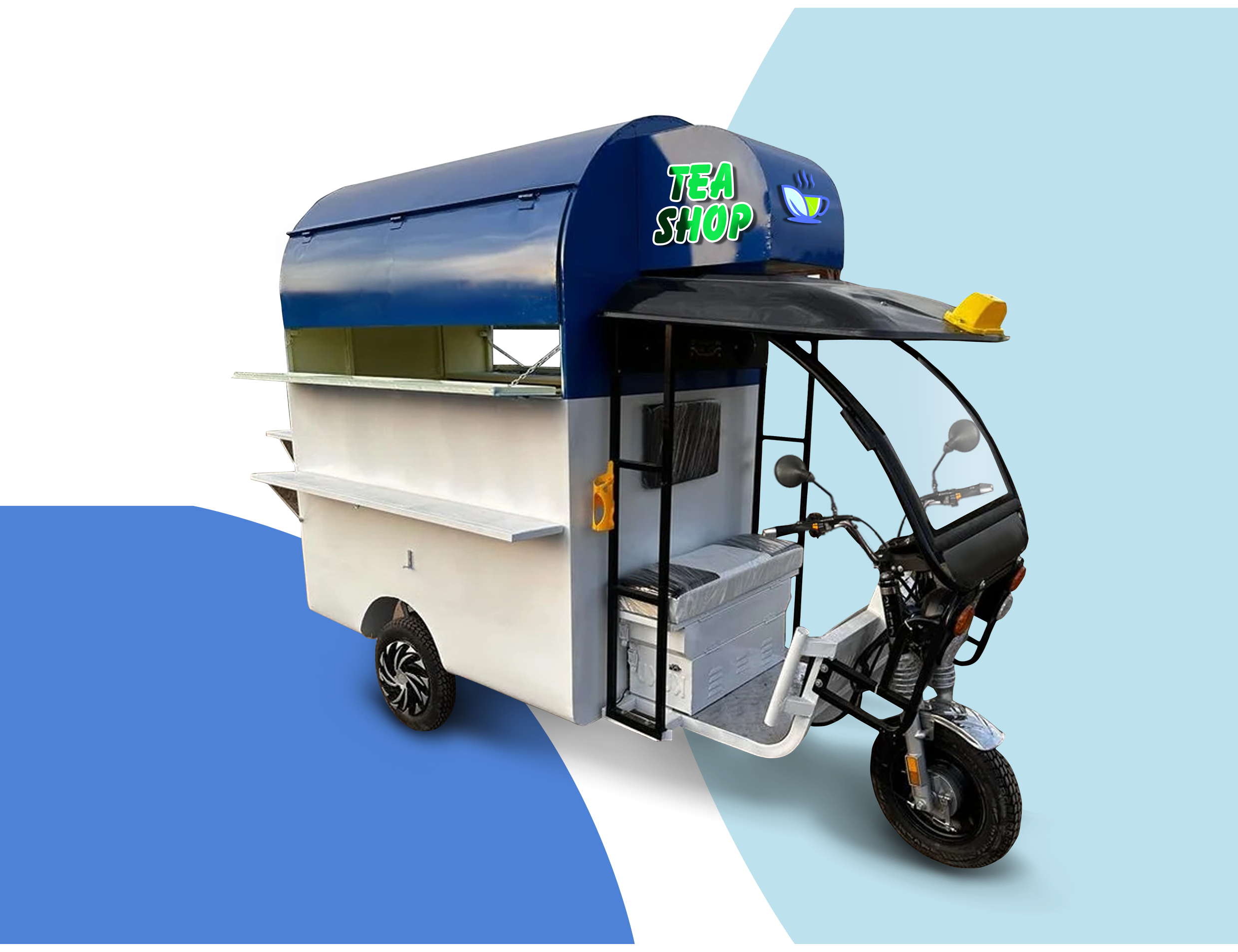

Tiger VT & VT+, model is a mobility kitchen setup for making a tea & soup selling vehicle with completely designed for a range of urban and village applications. Because of their distinctive body design and driver cabin, it is built with fascia that combines electric motors with a drivetrain and battery system. Suitable for activities such as street selling and public places which benefits small business owners and regular tenants by providing them with a practical and affordable mobility option. Like diesel ICE vehicles, they are categorized as L3 cars and can be registered at any Regional Transport Office (RTO) in India
Preloader Close
T
I
G
E
R
- Unleash the Power of TIGER
- +91 98408 42648
- Anna Nagar East, Chennai - 102
- sales@tigerautomobiles.com
Tiger - VT
Color
sPECIFICAtIoN
|
E-Cart |
Tiger VT |
Tiger VT+ |
|
ATTRIBUTE |
||
|
VEHICLE CATEGORY |
L3 LOADING CART |
L3 LOADING CART |
|
VEHICLE SEATING/ LOADING CAPACITY |
Driver & 300 Kg / 500 Kg |
Driver & 300 Kg / 500 Kg |
|
BATTERY, CONTROLLER & POWER |
||
|
MOTOR TYPE |
BLDC MOTOR & POWERTRAIN |
BLDC MOTOR & POWERTRAIN |
|
BATTERY TYPE |
LEAD ACID |
LITHIUM-ION-LFP |
|
BATTERY VOLTAGE |
48 V |
48 V |
|
BATTERY CAPACITY |
140 AH |
100 AH |
|
MOTOR POWER |
1.2 KW |
1.2 KW |
|
PEAK TORQUE |
21 NM |
21 NM |
|
CONTROLLER |
24 Tube MOSFET |
24 Tube MOSFET |
|
SPEED |
≤25kmph |
≤25kmph |
|
CLIMBING |
≤5 Degree |
≤5 Degree |
|
TRANSMISSION |
||
|
TRANSMISSION TYPE |
DIFFERENTIAL |
DIFFERENTIAL |
|
SUSPENSION & BRAKES |
||
|
FRONT SUSPENSION |
HYDRAULIC 43MM |
HYDRAULIC 43MM |
|
REAR SUSPENSION |
LEAF SPRING WITH DAMPENER |
LEAF SPRING WITH DAMPENER |
|
STEERING |
HANDLE BAR |
HANDLE BAR |
|
BRAKE |
DRUM BRAKE HYDRAULICALLY ACTUATED |
DRUM BRAKE HYDRAULICALLY ACTUATED |
|
WHEEL |
2.15J-12” |
2.15J-12” |
|
TYRE |
3.75-12 |
3.75-12 |
|
DIMENSION |
||
|
WHEELBASE |
2130 MM |
2130 MM |
|
MINIMUM GROUND CLEARANCE |
180 MM |
180 MM |
|
DIMENSIONS(LXWXH) |
Length 5 x Width 3.5 x Height 4.15 Ft / Length 6 x Width 4.5x x Height 4.15 Ft |
Length 5 x Width 3.5 x Height 4.15 Ft / Length 6 x Width 4.5x x Height 4.15 Ft |
|
WEIGHTS |
||
|
GROSS VEHICLE WEIGHT (WITH BATTERIES) |
699 Kg |
699 Kg |
|
PAYLOAD |
300 Kg & Maximum 500 Kg |
300 Kg & Maximum 500 Kg |
|
PERFORMANCE |
||
|
TOP SPEED |
<25 KMPH |
<25 KMPH |
|
TYPICAL DRIVING RANGE |
70 TO 90 KM |
70 TO 90 KM |
|
GRADEABILITY |
12% |
12% |
|
CHARGER |
||
|
CHARGER TYPE |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
OFF-BOARD CHARGER 230 V, AC, 50 Hz |
|
CHARGE DURATION |
5-6 HRS |
5-6 HRS |
|
OTHERS |
||
|
FRONT WIND SHIELD |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
LAMINATED GLASS WITH WIPER & ITS MOTOR |
|
HEADLIGHT & ROOF LIGHT |
HALOGON |
HALOGON |
|
METER |
ANALOG / DIGITAL METER |
ANALOG / DIGITAL METER |
|
BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
ATTRACTIVE FRONT & REAR BUMPER |
|
ACCESSORIES |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
TOOL KIT, REVERSE BUZZER, REVERSE CAMERA, GLOVE BOX |
|
Tiger VT uses Valve Regulated Lead Acid (VRLA) batteries, while Tiger VT+uses Lithium Iron Phosphate (LFP) batteries. Depending on how long they want their batteries to endure and function, users can pick between any of these two |
||
